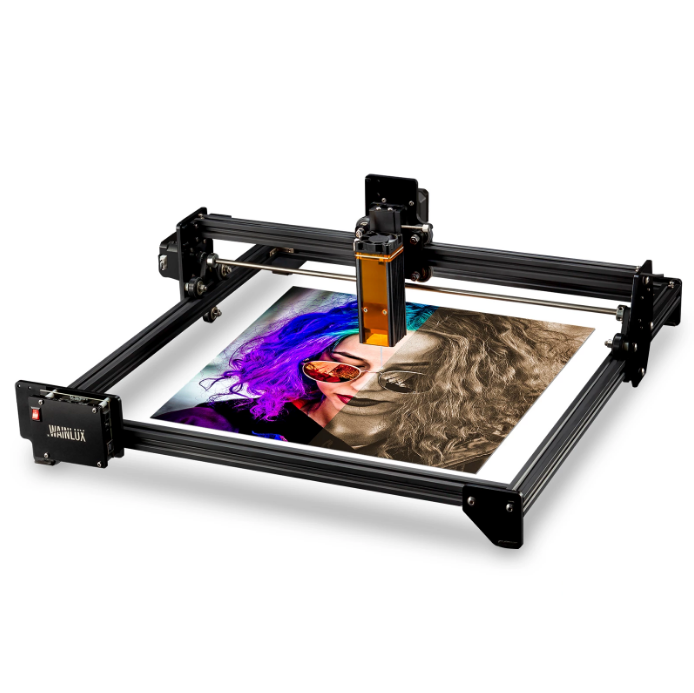

CNC Laser Engraver Machine BT Control Portable Laser Cutter Printer For Wood/Metal/MDF

If you need a quality laser engraving machine that can perform its functions on the widest variety of surfaces you want, this product is for you. It is a high quality and powerful laser engraver, easy and fast to operate, with the capacity to work in the industrial field.

Although it is an equipment that must be assembled, its installation process is simple and practical. Both for this and for its use, the equipment has a user's manual, which will guide you through each step. Its power is enough to work as a laser cutter, so you will be able to make precise cuts in different materials.

via GIPHY

Laser engraving machine features

• Combines a fixed focus lens and a sliding design
• Very easy to use

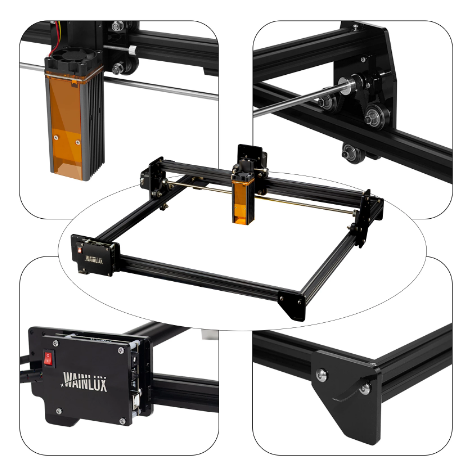

• All-metal structure design makes the machine work stably and improves the engraving precision
• Assembly can be completed in 10-15 minutes

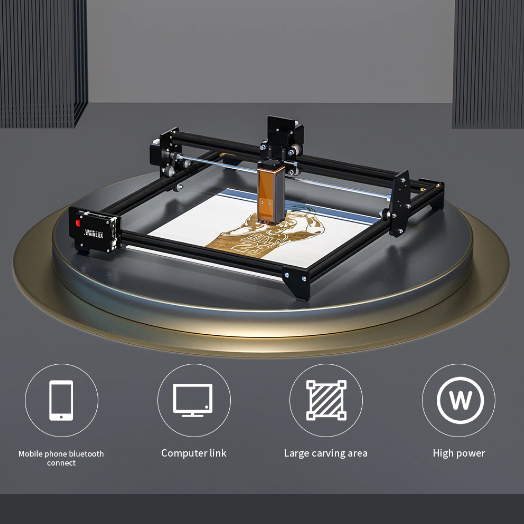

• Is compatible with a variety of mature engraving software, such as Lasergrbl, Lightburn, supports pwm engraving, supports windows system, mac system, wireless Bluetooth connection, android mobile phone, iOS mobile phone
• The laser filter hood can filter 98% of UV rays into the eyes
• The x-axis and y-axis have precise scale lines, which is convenient for you to quickly measure the size of the engraved object

Specifications

• Engraving area size: 410 x 370mm
• Engraving material: wood, paper, cardboard, plastic, PCB board, alumina, 304 Stainless steel, ceramic, black Stone
• Cutting material: wood, acrylic, cardboard, fabric, bamboo, plastic board
• Diode laser power: 5.5 – 6W
• Laser wavelength: 455± 5nm
• Engraving accuracy: 0.01mm
• Focusing method: fixed focus laser + sliding device
• Laser shield: the filter on the laser protects the user's eyes and prevents animals from grabbing the laser spot
• Operating software: wainlux research and development app program, compatible with lasergrbl, lightburn, etc
• Operating system: support file formats BMP, JPG, PNG, DXF and other image formats.
• Data transmission method: USB connection
• Power supply: international standard power
• Input: 100-240V AC, 50/60Hz output: 12V 5A
• Machine weight: 2.4kg

FAQ

• Can it cut wood?

It can cut wood with a thickness of 1~2mm.

• Can I download the program to my laptop?

Yes, the software can be found online and is easy to use.

• How many watts is this unit?

it is 30W.

Package includes:

• 1 laser engraving machine
• 2 axis slide rails
• 2 support beams
• 1 control box
• 1 protective glasses
• 1 user manual
• 1 power adapter
• 1 power cable
• 1 USB cable
• 1 kit of accessories
• 1 kit of installations tools
• 1 kit of wire ties
• 1 kit of screws
